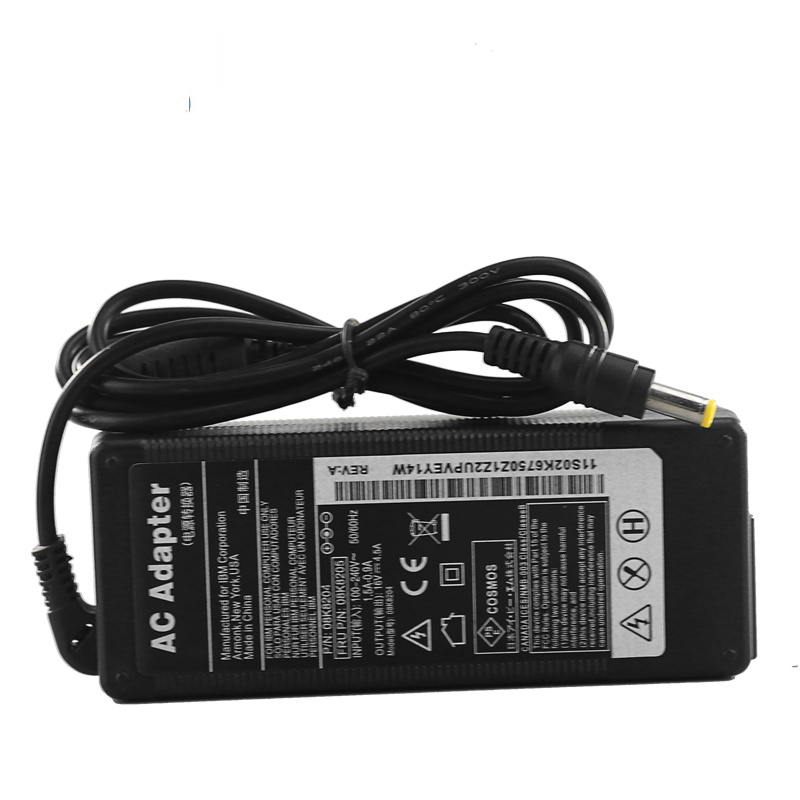

16V 4.5A Lenovo Power Supply AC Adapter

16V 4.5A Lenovo Power Supply AC Adapter is part of our laptop chargers range. We build it on our own lines in Shenzhen, as a standard model or with your label, plug type, cable length and packaging.

RatingModel 1517944
INPUT100–240V ~ 50/60Hz
OUTPUT VOLTAGE16V
OUTPUT CURRENT4.5A
RATED POWER72W
DC CONNECTOR5.5×2.5 mm
COMPATIBLE WITHLenovo
CEFCCRoHS
Factory directMade in-house
1 yearWarranty
15–25 daysBulk lead time
Get the factory priceMore laptop chargers

Specifications

Contact discharge??6KV
Air discharge??8KV
Place of OriginGuangdong, China (Mainland) Brand Name: Daxpoo
Output TypeDCConnection: Desktop
Item Name16v 4.5a power adapter Input: AC 100-240v 50-60hz
Dimension108×46×31mmProtection: OVP OCP SCP
CertificateCE FCC RoHSWeight: 180g
Efficiency80%-85%Warranty:1 years

About this model

Under normal atmospheric pressure, relative humidity of 90%, the test voltage is 500V DC, the power input to output, input to ground, output-to-ground insulation resistance not less than 10M??.

Boxes of machine housing after discharge will not affect the work of the power module mounted cabinet

With 9 years experience in the filed, Daxpoo Tech Co.,Ltd is one of the best Power Supply device

manufacturer in China. Our world-class production plant passedISO9001:2008 & ISO14001:2004certifications and is equipped

Factory quote for this model

You are writing to the factory, not a reseller. Send the model or spec and quantity; a sales engineer replies within one working day with factory pricing and lead time.

We use your details only to answer this request. Privacy policy

How this adapter is made

Every unit goes through the same four stages in our 3,000 m² factory before it ships.

  1. Technician checking racks of power adapters under burn-in load

    PCBA production

    Boards are assembled and soldered at ESD-protected stations.

  2. Daxpoo power adapter assembly line with operators at ESD workstations

    Final assembly

    Board, enclosure, cable and DC tip come together on the line.

  3. Engineers at oscilloscopes and test benches beside an environmental chamber

    Test and 24 h burn-in

    Output, ripple and protection test, then a full day under load.

  4. Pallets of cartons on racks with a forklift in the dispatch warehouse

    Final QC and packing

    Label and appearance check, then bulk or retail packing.
