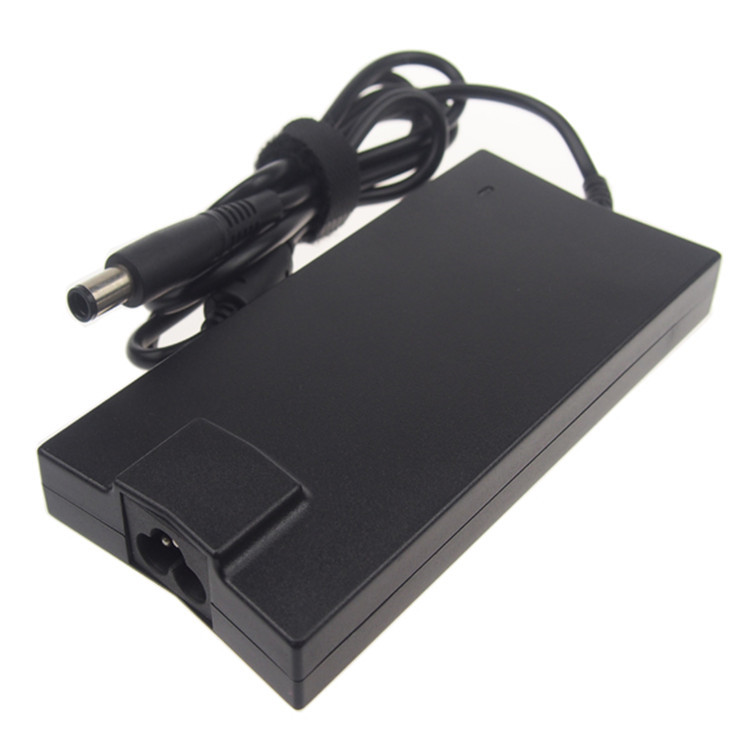

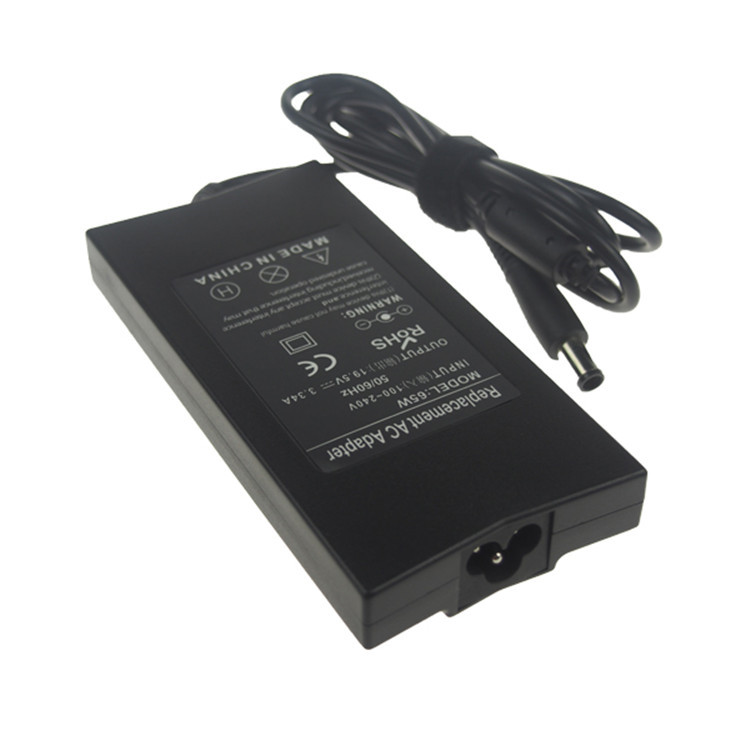

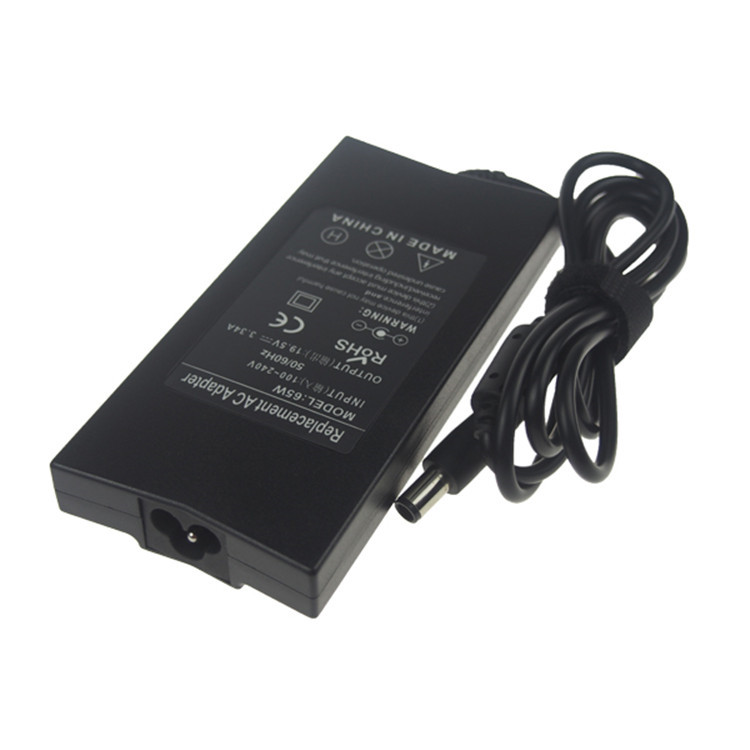

19.5V 3.34A 65W ac dc adapter power adapter
19.5V 3.34A 65W ac dc adapter power adapter is part of our wall chargers & ac adapters range. We build it on our own lines in Shenzhen, as a standard model or with your label, plug type, cable length and packaging.
RatingModel 1523177
INPUT100–240V ~ 50/60Hz
OUTPUT VOLTAGE19.5V
OUTPUT CURRENT3.34A
RATED POWER65W
DC CONNECTOR7.4×5.0 mm
CEFCCRoHS
Factory directMade in-house
12 MonthsWarranty
15–25 daysBulk lead time
Specifications
| Use | Laptop |
|---|---|
| Certification | FCC |
| ATX Standard | ATX 12V 2.3 |
| Fan Type | 14cm |
| Fan Size | 12" |
| Feature | Module |
| Hard Disk Interface | ??8 |
| Modular | Modular |
| Warranty | 12 Months |
| Usage | Laptop |
| Output Voltage | 19.5V |
| Output Power | 90w |
| Model Number | YSO05 |
| Product Name | Power Adapter |
| Input Voltage Ran | AC 95V~265V |
| Protection | OCP,OTP,OVP,SCP |
| DC Size | 7.4×5.0mm |
| Output Current | 3.34a |
| Packaging | 50pcs packed in one carton |
How this adapter is made
Every unit goes through the same four stages in our 3,000 m² factory before it ships.

PCBA production
Boards are assembled and soldered at ESD-protected stations.

Final assembly
Board, enclosure, cable and DC tip come together on the line.

Test and 24 h burn-in
Output, ripple and protection test, then a full day under load.

Final QC and packing
Label and appearance check, then bulk or retail packing.
