Manufacturer since 20033,000 m² factory in Shenzhen5 production lines100,000 power supplies / monthOEM & ODM, factory direct

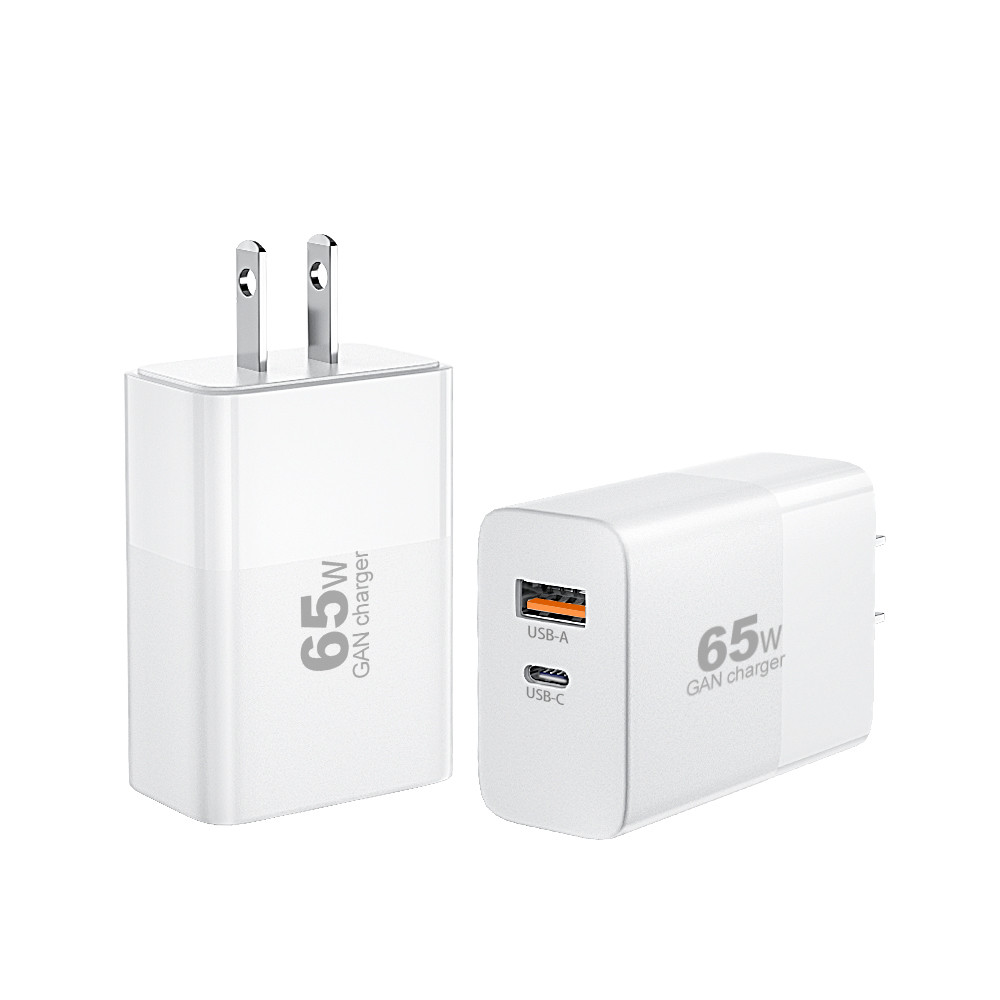

1C1A 2-Port 65W GaN Wall Charger PD Charger

1C1A 2-Port 65W GaN Wall Charger PD Charger is part of our usb-c, pd & gan chargers range. We build it on our own lines in Shenzhen, as a standard model or with your label, plug type, cable length and packaging.

RatingModel 1527367
INPUT100–240V ~ 50/60Hz
OUTPUT CURRENT1A
RATED POWER65W
CEFCCRoHS
Factory directMade in-house
1 yearWarranty
15–25 daysBulk lead time
Get the factory priceMore usb-c, pd & gan chargers

Specifications

Types OfUsb Wall Charger
CertificationFcc, Ce, Rohs
UseMobile Phone, Tablet, Household Electrical Appliances
MaterialPc Fireproof Material, Abs, Gan
ProtectionShort Circuit Protection, Over-Charging, Overcurrent, Overvoltage
Fast Charge AgreementQc3.0, Pd, Pd 3.0, Pd 2.0
PortType-C
Input Voltage/current100–240V AC, 50/60Hz
Place Of OriginChina
Product Name65W USB C Gan laptop charger
Efficiency>85%
Input Voltage100–240V AC, 50/60Hz
Output USB-C5V3A,9V3A,12V3A,15V3A,20V3.25A 65W Max
PPS3.3V-11V/5A
USB-A4.5V5A,5V4.5A,3.6V-6V/3A,6V-9V/2A, 9V-12A/1.5A
Voltage Regulation Factor5%
Working Temperature0-50??

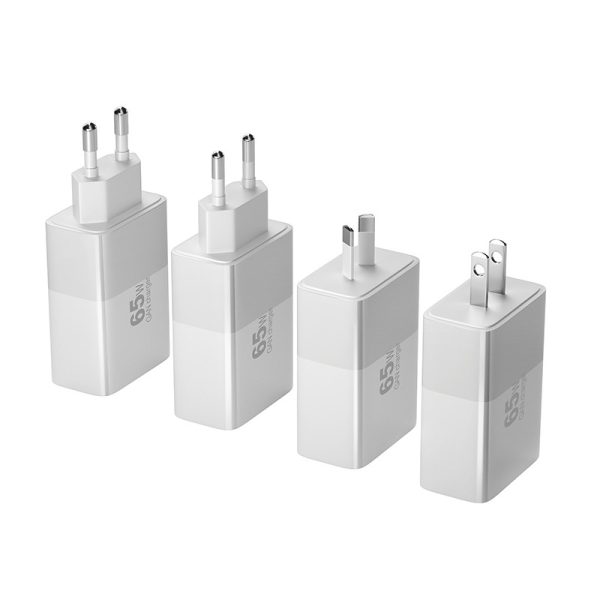

PlugFolded US, EU , UK, AUS, ARGENTINA, SK, INDIA
Packagingeach one in a pe bag ,then 100pcs in one carton

Factory quote for this model

You are writing to the factory, not a reseller. Send the model or spec and quantity; a sales engineer replies within one working day with factory pricing and lead time.

We use your details only to answer this request. Privacy policy

How this adapter is made

Every unit goes through the same four stages in our 3,000 m² factory before it ships.

  1. Automated placement head over a printed circuit board

    PCBA production

    Boards are assembled and soldered at ESD-protected stations.

  2. Daxpoo power adapter assembly line with operators at ESD workstations

    Final assembly

    Board, enclosure, cable and DC tip come together on the line.

  3. Engineers working at test equipment in a quality laboratory

    Test and 24 h burn-in

    Output, ripple and protection test, then a full day under load.

  4. Warehouse racks loaded with pallets

    Final QC and packing

    Label and appearance check, then bulk or retail packing.
