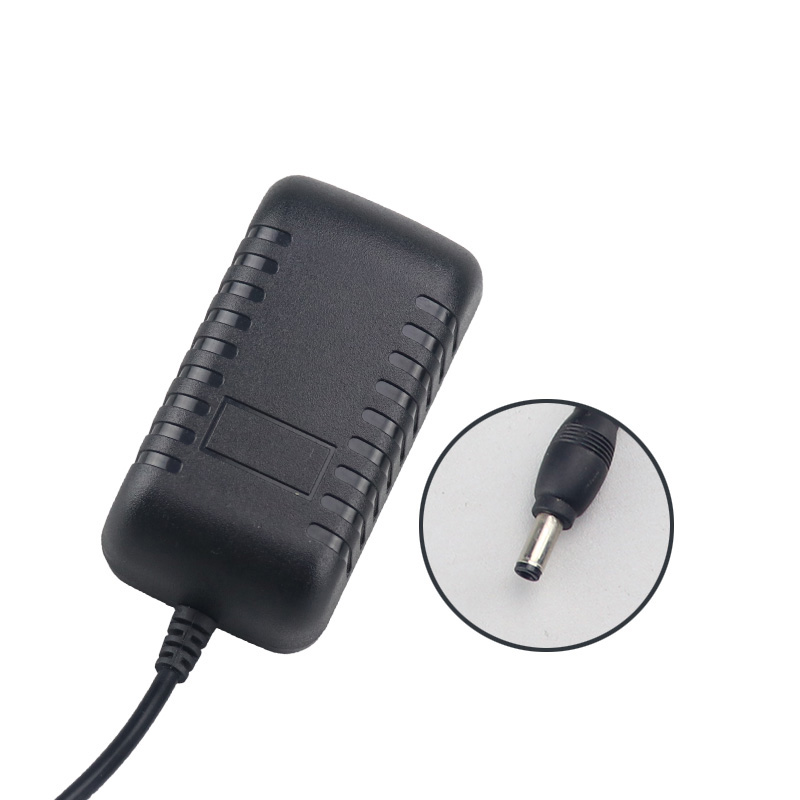

24v 0.65a 15.6w Switching Power Adapter

24v 0.65a 15.6w Switching Power Adapter is part of our led & switching power supplies range. We build it on our own lines in Shenzhen, as a standard model or with your label, plug type, cable length and packaging.

RatingModel 1518440
INPUT100–240V ~ 50/60Hz
OUTPUT VOLTAGE24V
OUTPUT CURRENT0.65A
RATED POWER15.6W
CEFCCRoHS
Factory directMade in-house
1 yearWarranty
15–25 daysBulk lead time
Get the factory priceMore led & switching power supplies

Specifications

Colorblack
Input100–240V AC, 50/60Hz
Weight118g

About this model

We according to the analysis of the MOS tube in the process of Switching Power Supply design, MOS tube care crisis is most severe fever, because the loss is most serious, and the wastage of the MOS tube mainly has two points, one is the loss of state, the second is switching process loss, loss of switch process because grid which caused by the switching time and the size of the charge, so how to solve? We can use faster, shorter recovery time electronic components to reduce switching losses. As for the on – state loss problem, we can use the switch of the base on – state resistance to reduce its loss. Of course, better design can also reduce wear and tear, depending on the level of the engineer.

Secondly, we have analyzed the problems of the transformer itself, which generally lead to high temperature burning of the transformer, mainly including four points: 1. Problems of winding process; 2. Copper loss; 3. Transformer iron loss; 4. In addition to these cases, in fact, there is another possibility, that is the transformer appeared aging phenomenon.

Daxpoo Tech Co., Ltd. is a high-tech enterprise engaged in r&d, production and sales of notebook adapters. Main: switch power supply, power adapter, charger, LED Power Supply , Disinfection lamp and other products professional production and processing. The products have passed CE, FCC, and other certifications. The products produced by the company have perfect protection function, stable performance, safe and reliable. With professional r & d, production and sales experience, the company has accumulated strong technical advantages and rich market resources in the field of power adapters. The company is now able to provide a full range of alternative adapters for the world’s major brands of notebook computers.

Factory quote for this model

You are writing to the factory, not a reseller. Send the model or spec and quantity; a sales engineer replies within one working day with factory pricing and lead time.

We use your details only to answer this request. Privacy policy

How this adapter is made

Every unit goes through the same four stages in our 3,000 m² factory before it ships.

  1. Technician checking racks of power adapters under burn-in load

    PCBA production

    Boards are assembled and soldered at ESD-protected stations.

  2. Daxpoo power adapter assembly line with operators at ESD workstations

    Final assembly

    Board, enclosure, cable and DC tip come together on the line.

  3. Engineers at oscilloscopes and test benches beside an environmental chamber

    Test and 24 h burn-in

    Output, ripple and protection test, then a full day under load.

  4. Pallets of cartons on racks with a forklift in the dispatch warehouse

    Final QC and packing

    Label and appearance check, then bulk or retail packing.
