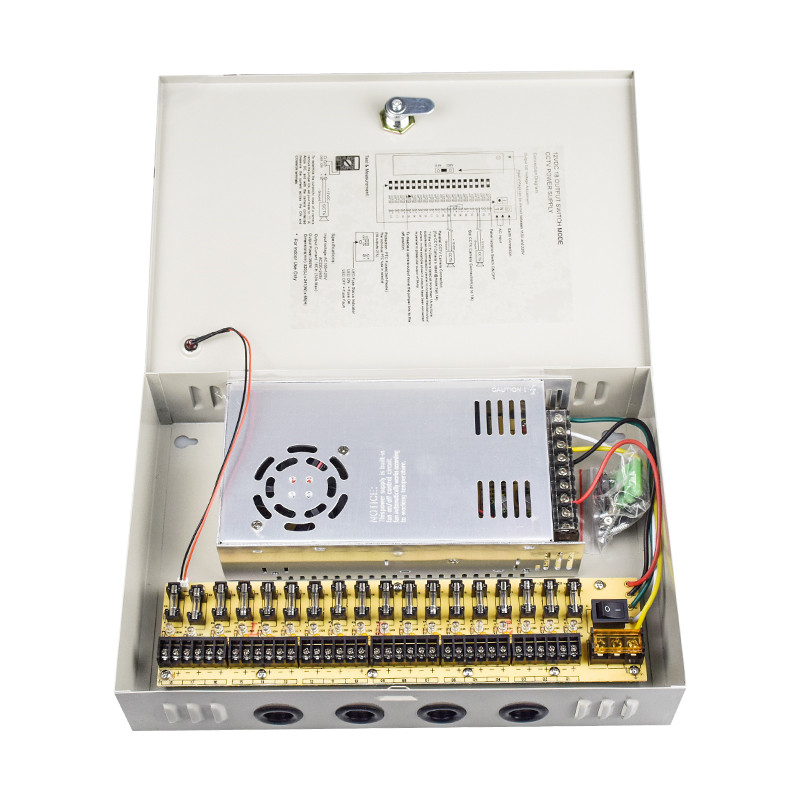

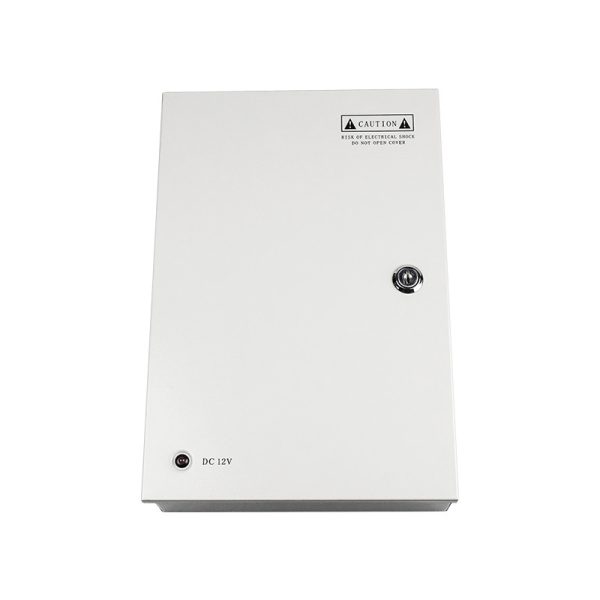

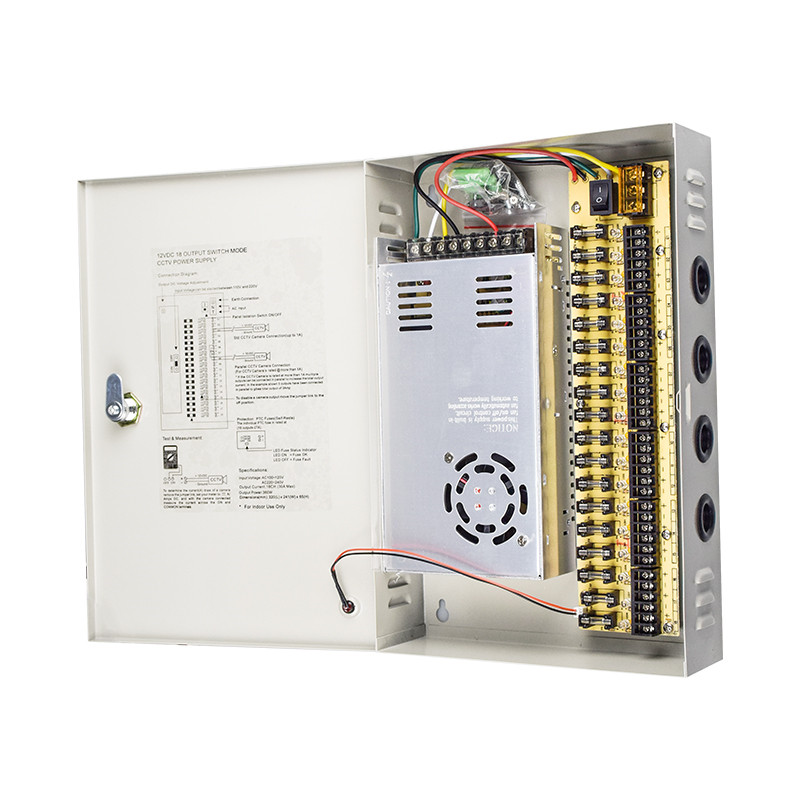

360W 12V 30A 18CH CCTV Power Supply Box
360W 12V 30A 18CH CCTV Power Supply Box is part of our led & switching power supplies range. We build it on our own lines in Shenzhen, as a standard model or with your label, plug type, cable length and packaging.
RatingModel 1522597
INPUT100–240V ~ 50/60Hz
OUTPUT VOLTAGE12V
OUTPUT CURRENT30A
RATED POWER360W
CEFCCRoHS
Factory directMade in-house
1 YearWarranty
15–25 daysBulk lead time
Specifications
| Place Of Origin | China |
|---|---|
| Output Power | 301 – 400w, 360W |
| Output Type | Multiple |
| The Output Voltage | 12v |
| Output Type | Single |
| Warranty | 1 Year |
| Input Voltage | 100–240V AC, 50/60Hz |
| Connection Mode | Series Switching Power Supply |
| Starting Mode | Self-excited Switching Power Supply |
| Voltage Regulating Mode | Width Modulation Type |
| Power Supplying System | Terminal Power Distribution Equipment |
| Energy Transmission | One-way Transmission |
| Modulation System | PWM |
| Certification | FCC |
| Product Name | 12V 10A 120W Cctv Power Supply |
| Input Range | 100–240V AC, 50/60Hz |
| Output Voltage | 12V 30A 360W |
| Channel | 18ch |
| Output Current | 18×0.55A Fused Outlets(10AMax) |
| Dimensions(mm) | 318(L)*210(W)*65(H) |
How this adapter is made
Every unit goes through the same four stages in our 3,000 m² factory before it ships.

PCBA production
Boards are assembled and soldered at ESD-protected stations.

Final assembly
Board, enclosure, cable and DC tip come together on the line.

Test and 24 h burn-in
Output, ripple and protection test, then a full day under load.

Final QC and packing
Label and appearance check, then bulk or retail packing.
