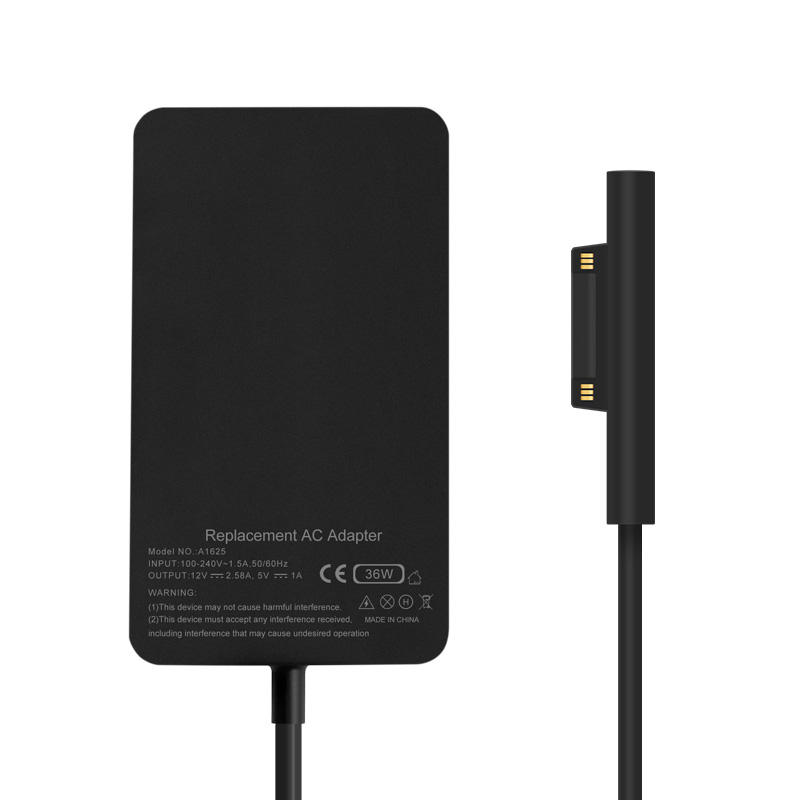

36W Charger With USB For Microsoft Surface Pro3/Pro4/Pro5
Under normal circumstances, USB3.1 only uses 2 pairs of TX / RX differential lines as data lines. It is connected to TX1 / RX1 during forward insertion and TX2 / RX2 during reverse insertion. It can be seen that in any case, there will be 2 pairs of differential lines It is not used. The DP alternate mode is to load the DP signal onto these two pairs of “excessive” differential lines, so that USB 3.1 + DP can work simultaneously.
Of course, if the receiving end only needs a DP signal and no USB 3.1 signal, then DP can use all 4 pairs of TX / RX differential lines for output, so as to achieve a maximum of 4lanes DP output, providing a total output bandwidth of up to 32.4Gbps (each lane can output 8.IGbps), easily realize 5Kx3K60 auxiliary video, even up to 8K ?? 4K 60 frame video (4: 2: 0 data), this mode is DPonly mode, in addition to compatible with USB2.0, Type-C The USBD + / D- signal is also reserved for USB 2.0 devices, so you only need to use the Type-C interface. USB2.0 and even USB 1.0 devices can also support front and back insertion. It is worth mentioning that the use of USBD + / D- in conjunction with the above DP only mode can achieve the DP + USB2.0 mode. DP occupies 4 pairs of TX / RX differential lines, USB only uses D + / D-.
Micro
USB Charger
is a new form of USB interface, which came out with the latest USB 3.1 standard. Released by the USB-IF organization in August 2014, it is a new interface developed by the USB standardization organization to solve the long-standing physical interface specifications of the USB interface, and the power can only be transmitted in one direction. It integrates charging, display, and data transmission. Wait for the function in one.
The biggest feature of the interface is that it supports insertion in both directions, positive and negative, and officially solves the worldwide problem of “USB will never be inserted correctly”.
Daxpoo Tech Co. Ltd is professional engaged in the development, production, sales of all kinds of power supplies and accessories high-tech . The main products are power adapters ,
Switching Power Supply
, waterproof
Power Supply
and others. The factory is located in henggang street, longgang district, shenzhen, china. The company has a complete production management system and professional testing equipment, in line with by the good faith, the strength and the product quality obtains the field the approval. The products of our company are widely used in LED lighting, power communications, instrumentation, monitoring equipment, industrial control automation and so on. “Respect for partners, carry forward the team spirit, dare to innovate and develop, people-oriented” is the business philosophy of all staff, and will follow the footsteps of customers, continuous product innovation and service improvement. We sincerely welcome customers from home and abroad to visit, negotiate, cooperate and develop with us.
Deta
il
s
Color
Black
Input
AC 100-240~1.5A 50/60Hz
Output
12V/2.58A;USB 5V/1A
Warranty
12 months
Power
36W
Place of Original
Shenzhen, China
Productivity
200,000/week
Port
Shenzhen
