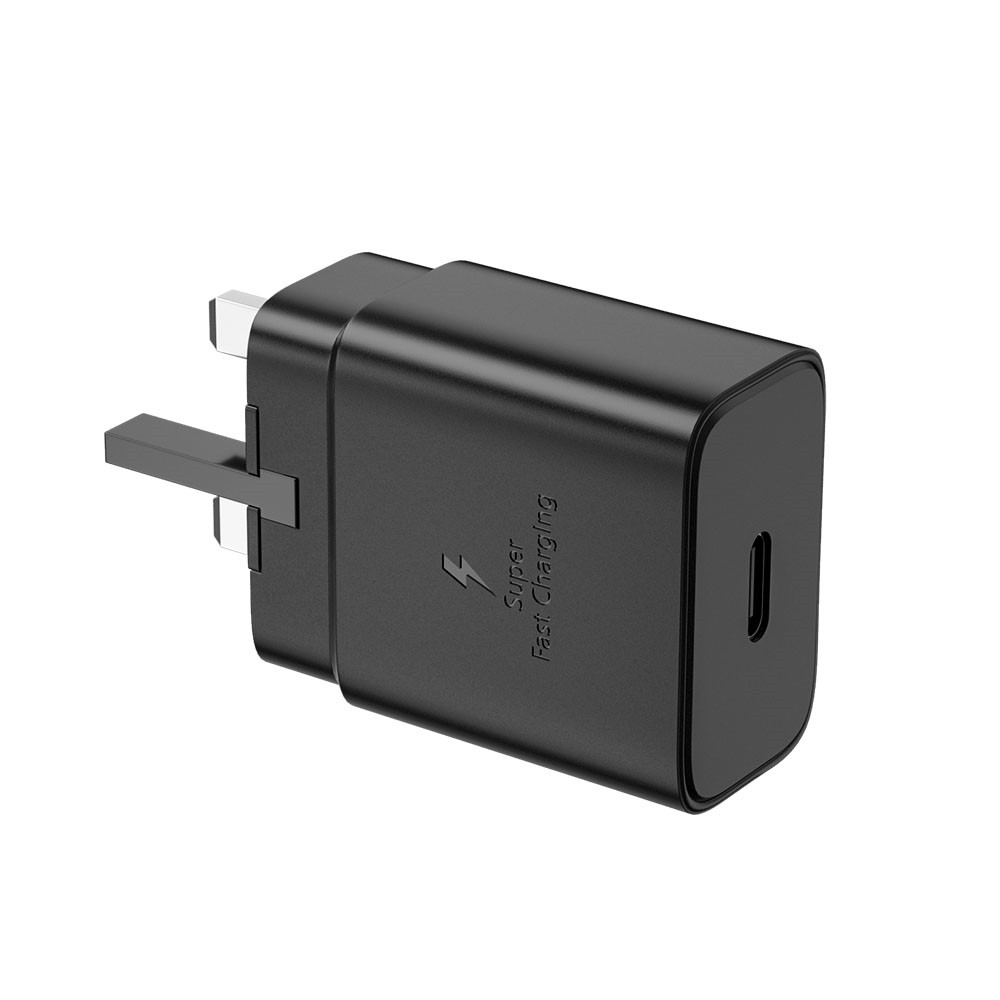

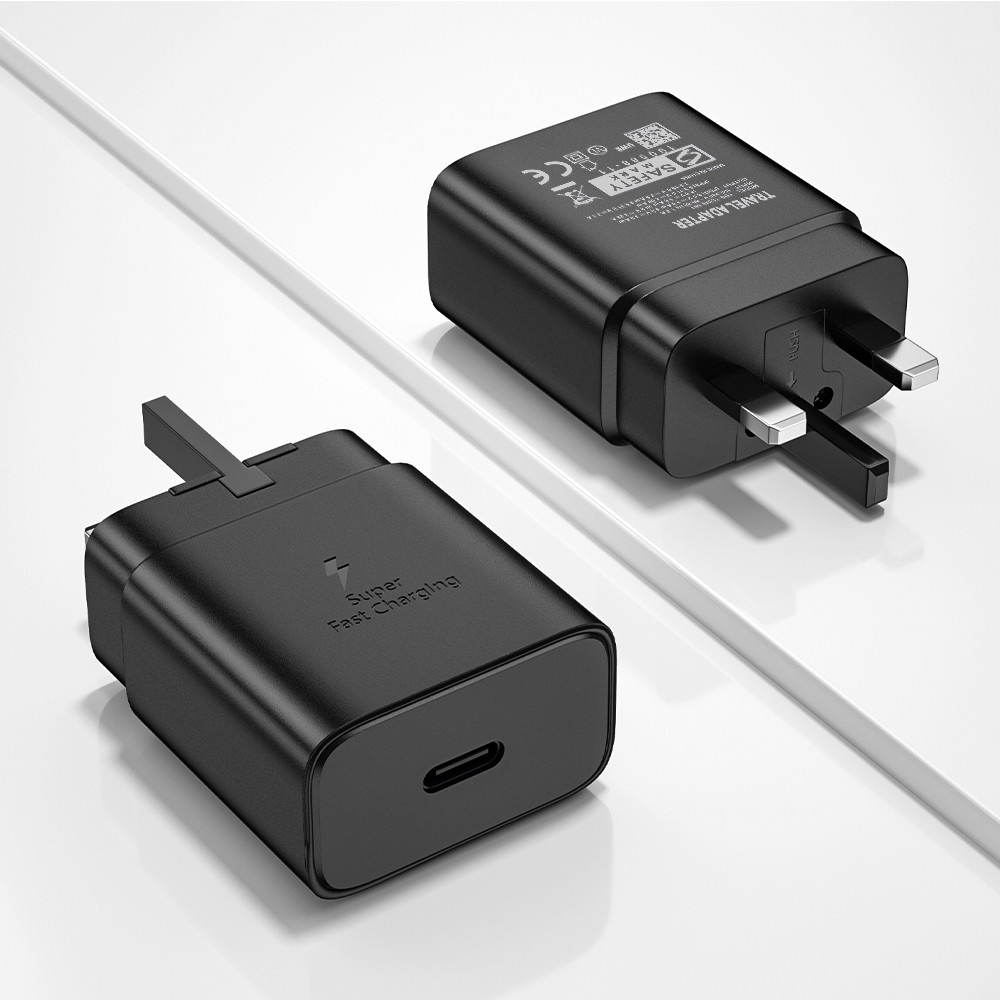

45W USB C Mobile Phone Charger for Samsung
45W USB C Mobile Phone Charger for Samsung is part of our usb-c, pd & gan chargers range. We build it on our own lines in Shenzhen, as a standard model or with your label, plug type, cable length and packaging.
RatingModel 1527276
INPUT100–240V ~ 50/60Hz
RATED POWER45W
COMPATIBLE WITHSamsung
CEFCCRoHS
Factory directMade in-house
1 yearWarranty
15–25 daysBulk lead time
Specifications
| Types Of | Usb Wall Charger |
|---|---|
| Certification | Fcc, Ce, Rohs |
| Use | Mobile Phone, Tablet |
| Material | Abs, Pc Fireproof Material |
| Protection | Short Circuit Protection, Over-Charging, Overcurrent, Overvoltage |
| Fast Charge Agreement | Pd |
| Port | Type-C |
| Input Voltage/current | 100–240V AC, 50/60Hz |
| Output Voltage/current | 5v/3a, 20 V |
| Rated Power | Other |
| Place Of Origin | China |
| Color | White/Black |
| Efficiency | >85% |
| Working Temperature | 0-50?? |
| Plug | UK Plug |
| Input Voltage | 100–240V AC, 50/60Hz |
| Voltage Regulation Factor | 5% |
| Output Voltage And Current | 5V 3A/9V 3A/15V 3A/20V 2.25A |
How this adapter is made
Every unit goes through the same four stages in our 3,000 m² factory before it ships.

PCBA production
Boards are assembled and soldered at ESD-protected stations.

Final assembly
Board, enclosure, cable and DC tip come together on the line.

Test and 24 h burn-in
Output, ripple and protection test, then a full day under load.

Final QC and packing
Label and appearance check, then bulk or retail packing.
