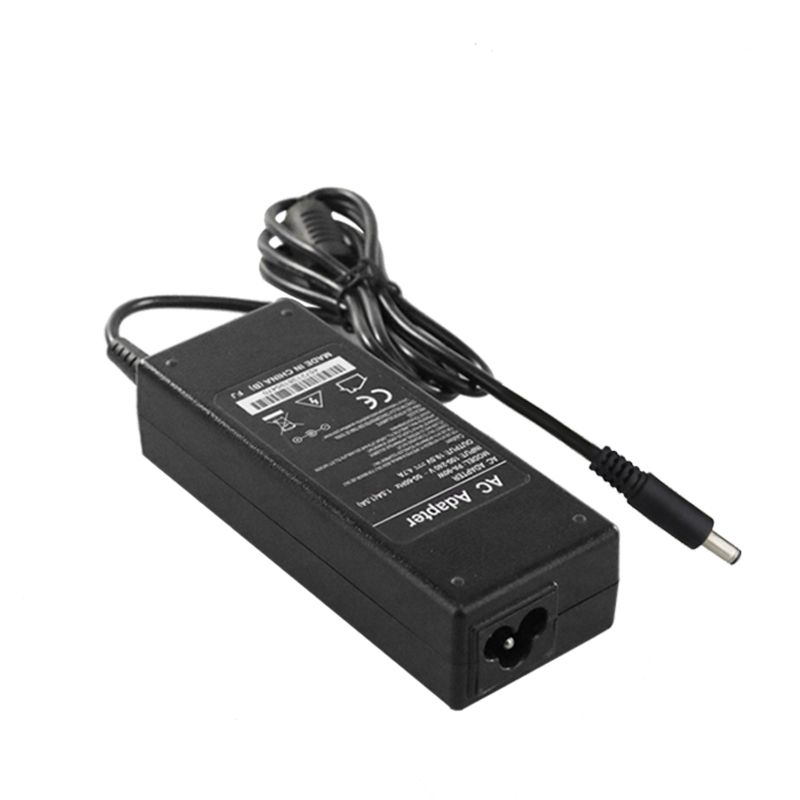

90W 19.5v 4.62a Power Supply Adapter 4.5*3.0mm Tip
90W 19.5v 4.62a Power Supply Adapter 4.5*3.0mm Tip is part of our led & switching power supplies range. We build it on our own lines in Shenzhen, as a standard model or with your label, plug type, cable length and packaging.
RatingModel 1519403
INPUT100–240V ~ 50/60Hz
OUTPUT VOLTAGE19.5V
OUTPUT CURRENT4.62A
RATED POWER90W
DC CONNECTOR4.5×3.0 mm
CEFCCRoHS
Factory directMade in-house
1 YearWarranty
15–25 daysBulk lead time
Specifications
| Input | 100–240V AC, 50/60Hz |
|---|---|
| Weight | 120g |
| Size | 108×46×31mm |
| Material | ABS+PC |
| Warranty | 1 Year |
| Packing | 1pcs PP bag +1pcs White box Or as your requirement. |
How this adapter is made
Every unit goes through the same four stages in our 3,000 m² factory before it ships.

PCBA production
Boards are assembled and soldered at ESD-protected stations.

Final assembly
Board, enclosure, cable and DC tip come together on the line.

Test and 24 h burn-in
Output, ripple and protection test, then a full day under load.

Final QC and packing
Label and appearance check, then bulk or retail packing.
