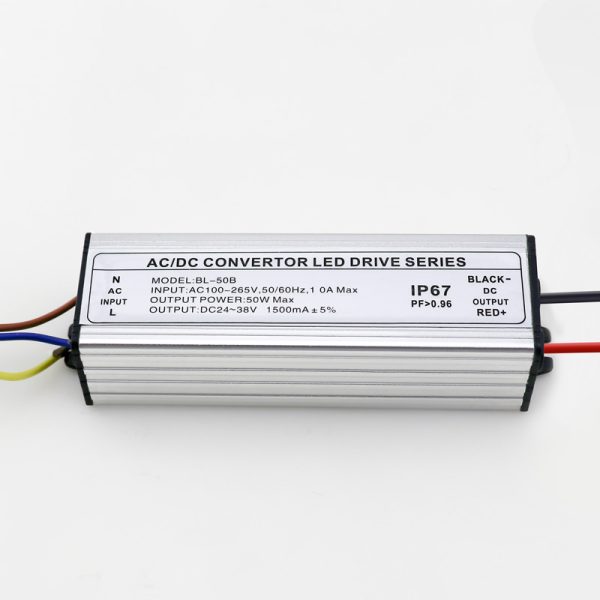

DC Convertor LED Driver 50 Watt Input 5A Waterproof
Power Supply
Type
DC convertor
Output
DC Voltage
24-38V
Rated current
1.5A
Current range
1.42A-1.58A
Rated power
50W
Voltage adj. range
0.5%
Setup, rise time
500ms/230VAC,3000ms/115VAC
Input
Voltage range
110-220VAC
Frequency range
47-63HZ
Efficiency range
85%
Inrush current
Cold-start current 36A/230V
Leakage current
<1mA/240VAC Protection Overload 105-135% hiccup mode, auto-recovery Over voltage 115-135% cut off the output, auto-recovery Environment Working temp. -20??~60?? Working humidity 20%-90%RH Safety&EMC Safety standard IP-OP:3.75KVAC, IP-FG:2KVAC EMC standard EN55022 Class B; EN61000-4-2/-3/-4/-5/-6/-11 Others Weight 240g Packing 50PCS/CTN Product Features: ??High efficiency,High reliability,Long lifetime; ??CEFCCROHS certified; ??Protected level: IP20; ??Universal AC input/Full rang; ??Efficiency: 85%; ??Built-in active PFC function,PFC>0.7;
??Protections: Short circuit/Over voltage/Over temperature;
??Low output ripple noise;
??Working temperature:-10??C~60??C;
??
Warranty:1 year
.
