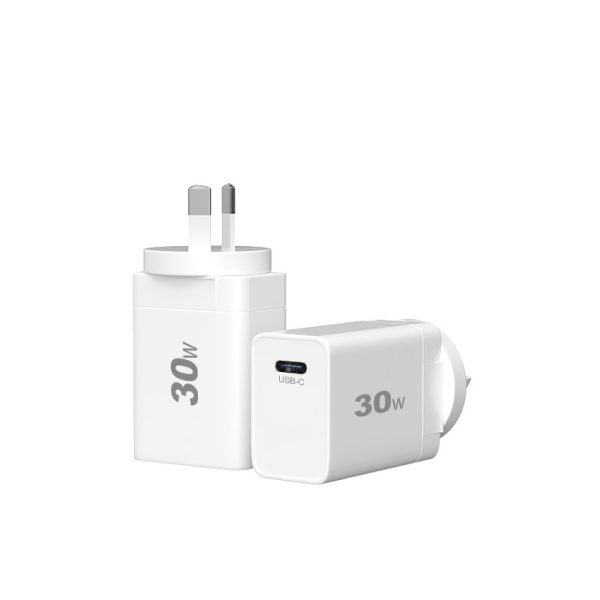

Fast Charging 30W USB C PD Mobile Charger

Fast Charging 30W USB C PD Mobile Charger is part of our usb-c, pd & gan chargers range. We build it on our own lines in Shenzhen, as a standard model or with your label, plug type, cable length and packaging.

RatingModel 1524535
INPUT100–240V ~ 50/60Hz
RATED POWER30W
CEFCCRoHS
Factory directMade in-house
1 yearWarranty
15–25 daysBulk lead time
Get the factory priceMore usb-c, pd & gan chargers

Specifications

Types OfUsb Wall Charger
CertificationCe, Fcc
UseMobile Phone, Game Player, Earphone, Smart Watch, Tablet, Mp3 / Mp4 Player, Universal, Home Security System
MaterialPc Fireproof Material, Abs
ProtectionShort Circuit Protection, Over-Charging, Overcurrent, Overvoltage
Fast Charge AgreementPd
PortType-C
Input Voltage/current100–240V AC, 50/60Hz
Output Voltage/current5v/3a, 20 V, 3.6v-6.5v/3a, 9v-12v/1.5a, 6.5v-9v/2a
Rated Power30w
Place Of OriginChina
ColorWhite/Black
Efficiency>85%
Working Temperature0-50??
PlugWith convertible EU, UK, AUS Plugs for your choose
Input Voltage100–240V AC, 50/60Hz
Voltage Regulation Factor5%
Output Voltage And Current5V3A, 9V3A, 12V2.5A, 15V2A, 20V1.5A

Factory quote for this model

You are writing to the factory, not a reseller. Send the model or spec and quantity; a sales engineer replies within one working day with factory pricing and lead time.

We use your details only to answer this request. Privacy policy

How this adapter is made

Every unit goes through the same four stages in our 3,000 m² factory before it ships.

  1. Technician checking racks of power adapters under burn-in load

    PCBA production

    Boards are assembled and soldered at ESD-protected stations.

  2. Daxpoo power adapter assembly line with operators at ESD workstations

    Final assembly

    Board, enclosure, cable and DC tip come together on the line.

  3. Engineers at oscilloscopes and test benches beside an environmental chamber

    Test and 24 h burn-in

    Output, ripple and protection test, then a full day under load.

  4. Pallets of cartons on racks with a forklift in the dispatch warehouse

    Final QC and packing

    Label and appearance check, then bulk or retail packing.
