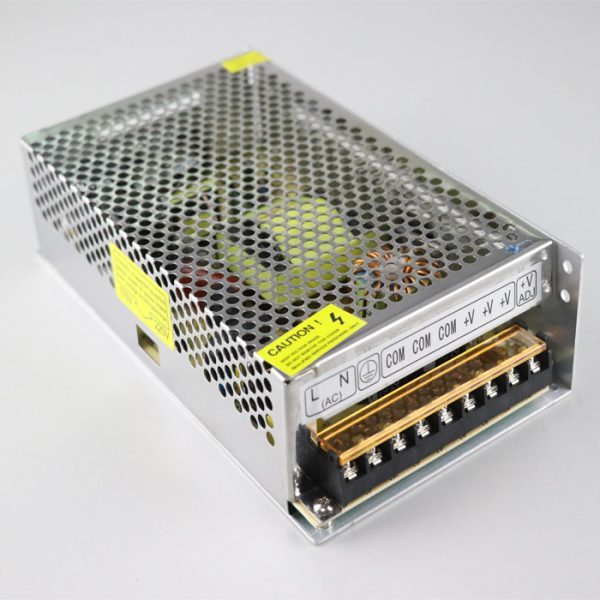

LED Power Supply 5V series S-200W-5

If you can’t find a suitable charging device in our wholesale product catalog, please contact our engineers for a tailor-made solution.


Product Category: Wireless Charger

LED
Power Supply
5V series S-200W-5

Common
Switching Power Supply
is divided into two categories, one is the DC switching power supply, the other is the AC switching power supply.
DC switching power supply is mainly used in the power quality of the poor circuit, it can be less energy quality of the ecological power into a better quality DC voltage, which will help the normal work of various machines. While the AC power switch can only work in the power quality of the better circuit. So in life, the application of DC switching power supply is very wide, and the application of AC switching power supply is relatively small.

For this item, followed are the Features:

1. Universal AC input/Full range

2. Protection: Short circult/Overload/Over Voltage

3. Cooling by free air convection

4. 100% full load burn-in test

5. No load power consumption < 0.5W 6. High efficiency, long life and high reliability 7. One year warranty Details: Model S-200-5V S-200-12V S-200-24V DC Output Voltage 5V 12V 24V Iutput Voltage Error ?? 2% ?? 1% ?? 1% Rated Output Current 40A 16.6A 8.3A Output Current Range 0-40A 0-16.6A 0-8.3A Tripple and Noise 150mVp-p 250mVp-p 350mVp-p Iniet Stability ?? 0.5% ?? 0.5% ?? 0.5% Tolerance Voltage ?? 1% ?? 0.5% ?? 0.5% DC Output Power 200W 200W 200w Efficiency 76% 78% 80% Adjustable Range for DC Voltage 4.5-5.6V 10-13.2V 20-26.4V AC Input Voltage Range 90~132VAC/180~264VAC selected by switch 47~63Hz; 240~370VDC Input Current 6.5A/115V 4A/230V AC Inrush Current Cold-Start Current: 25A/115V, 50A/230V Leakage Current <3.5mA/240VAC Overload Protection 105%~150% Type: Cut Output, Reset: Auto Recovery Over Voltage Protection Yes High Temperature Protection Yes Temperature Coefficient ?? 0.03% /??C (0~50??C) Start, Rise, Hold time 200ms, 100ms, 20ms Vibration 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes Withstand Voltage Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC Isolation Resistance Input and Output Intermal: Input and Enclosule, Output and Enclosure: 500VDC/100M Ohms Working Temperature and Humidity `-10??C~+60??C (Refer to Output Dreating Cutive), 20%~90%RH Storage Temperature and Humidity `20??C~+85??C, 10%~95%RH Overall Dimension 210*110*50 mm Weight 715g EMC Standards Meet FCC Part 15J Conduction class B Please Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25??C 70%Rh, Humidity. 2. Error, include the setting error, line stability and load stability. 3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF capacitor short-circuit for interrupting. 4. Inlet Voltage Stability test: when is over load, the lowest voltage of inter is representative to the highest voltage. 5. Load stability test: the load is from 0% to 100%, others 60%. 6. C3.4 must be knocked down. Applications: ??Office , Artwork, Display items lighting; ??Household lighting; ??Commercial lighting, such as Flood light, Down light, Flexible strip light, Wall washer, etc; ??Hotel, Restaurant lighting; ??Other public facility lighting.
