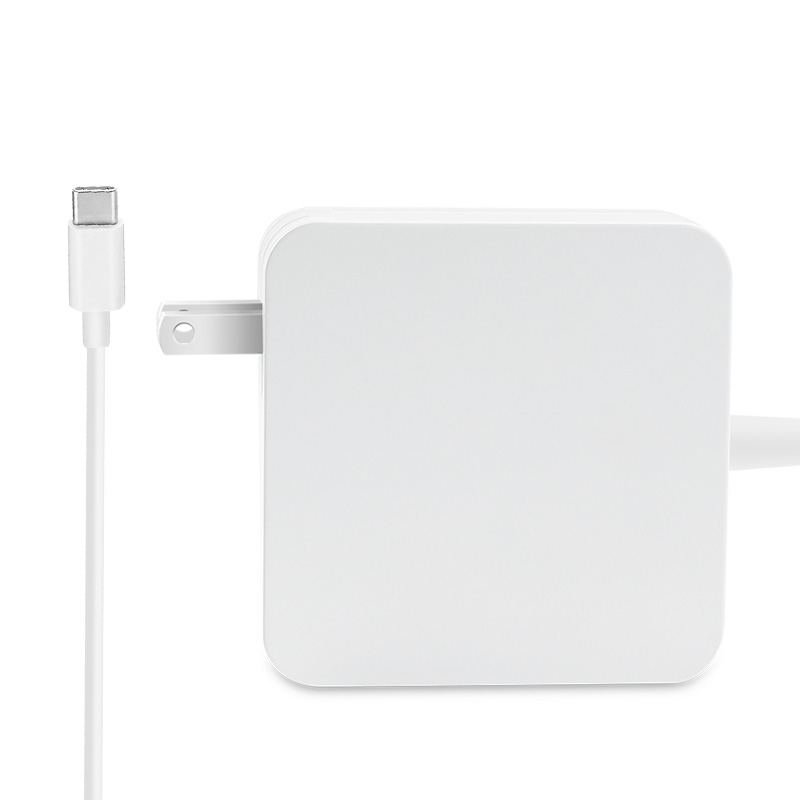

PD Solution Type-C Square Adapter 61W 20.3V3A/9V3A/5.2V2.4A

PD Solution Type-C Square Adapter 61W 20.3V3A/9V3A/5.2V2.4A is part of our usb-c, pd & gan chargers range. We build it on our own lines in Shenzhen, as a standard model or with your label, plug type, cable length and packaging.

RatingModel 1521136
INPUT100–240V ~ 50/60Hz
OUTPUT VOLTAGE20.3V
OUTPUT CURRENT3A
RATED POWER61W
CEFCCRoHS
Factory directMade in-house
12 monthsWarranty
15–25 daysBulk lead time
Get the factory priceMore usb-c, pd & gan chargers

Specifications

Colorwhite
Input100–240V AC, 50/60Hz
Warranty12 months

About this model

USB Type-C is a new form of USB interface (the USB interface also has Type-A and Type-B), which came out with the latest USB 3.1 standard. Released by the USB-IF organization in August 2014, it is a new interface developed by the USB standardization organization to solve the long-standing physical interface specifications of the USB interface, and the power can only be transmitted in one direction. It integrates charging, display, and data transmission. Wait for the function in one. The biggest feature of the Type-C interface is that it supports insertion in both directions, positive and negative, and officially solves the worldwide problem of “USB will never be inserted correctly”.

Under normal circumstances, USB3.1 only uses 2 pairs of TX / RX differential lines as data lines. It is connected to TX1 / RX1 during forward insertion and TX2 / RX2 during reverse insertion. It can be seen that in any case, there will be 2 pairs of differential lines It is not used. The DP alternate mode is to load the DP signal onto these two pairs of “excessive” differential lines, so that USB 3.1 + DP can work simultaneously. Of course, if the receiving end only needs a DP signal and no USB 3.1 signal, then DP can use all 4 pairs of TX / RX differential lines for output, so as to achieve a maximum of 4lanes DP output, providing a total output bandwidth of up to 32.4Gbps (each lane can output 8.IGbps), easily realize 5Kx3K60 auxiliary video, even up to 8K ?? 4K 60 frame video (4: 2: 0 data), this mode is DPonly mode, in addition to compatible with USB2.0, Type-C The USBD + / D- signal is also reserved for USB 2.0 devices, so you only need to use the Type-C interface. USB2.0 and even USB 1.0 devices can also support front and back insertion. It is worth mentioning that the use of USBD + / D- in conjunction with the above DP only mode can achieve the DP + USB2.0 mode. DP occupies 4 pairs of TX / RX differential lines, USB only uses D + / D-.

Daxpoo Tech Co. Ltd is professional engaged in the development, production, sales of all kinds of power supplies and accessories high-tech . The main products are power adapters , Switching Power Supply , waterproof Power Supply and others. The factory is located in henggang street, longgang district, shenzhen, china. The company has a complete production management system and professional testing equipment, in line with by the good faith, the strength and the product quality obtains the field the approval. The products of our company are widely used in LED lighting, power communications, instrumentation, monitoring equipment, industrial control automation and so on. “Respect for partners, carry forward the team spirit, dare to innovate and develop, people-oriented” is the business philosophy of all staff, and will follow the footsteps of customers, continuous product innovation and service improvement. We sincerely welcome customers from home and abroad to visit, negotiate, cooperate and develop with us.

Factory quote for this model

You are writing to the factory, not a reseller. Send the model or spec and quantity; a sales engineer replies within one working day with factory pricing and lead time.

We use your details only to answer this request. Privacy policy

How this adapter is made

Every unit goes through the same four stages in our 3,000 m² factory before it ships.

  1. Technician checking racks of power adapters under burn-in load

    PCBA production

    Boards are assembled and soldered at ESD-protected stations.

  2. Daxpoo power adapter assembly line with operators at ESD workstations

    Final assembly

    Board, enclosure, cable and DC tip come together on the line.

  3. Engineers at oscilloscopes and test benches beside an environmental chamber

    Test and 24 h burn-in

    Output, ripple and protection test, then a full day under load.

  4. Pallets of cartons on racks with a forklift in the dispatch warehouse

    Final QC and packing

    Label and appearance check, then bulk or retail packing.
